Pixel pitch: 0.7mm/ 0.9mm/1.2mm/1.5mm/1.8mm

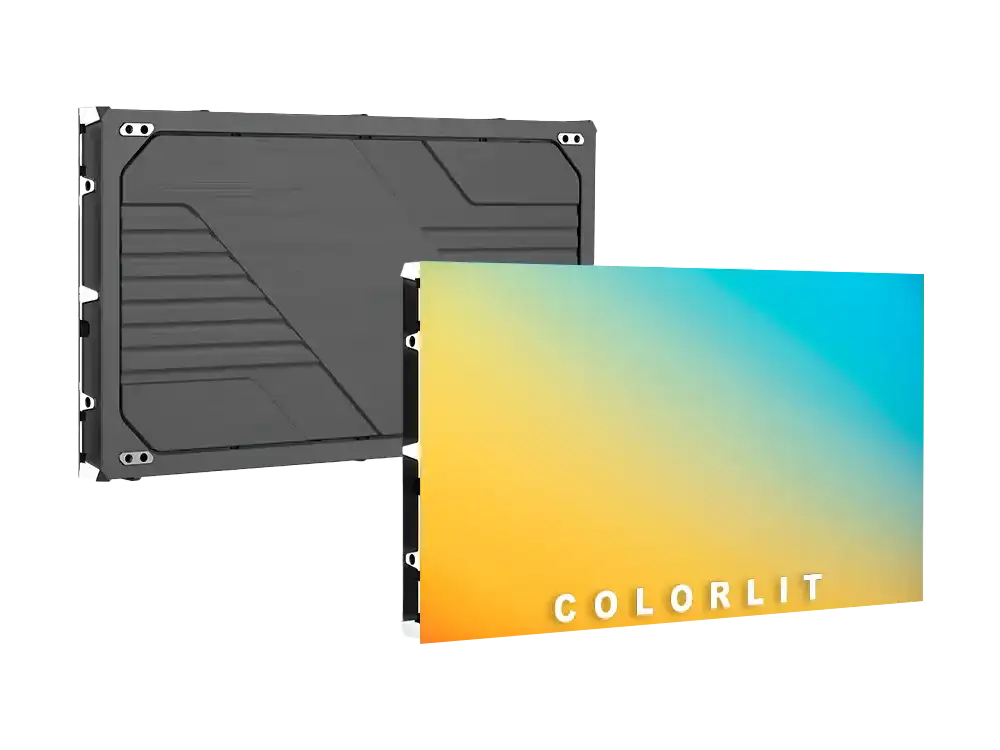

A2 Sereis COB LED Display
- Filp Chip COB LED Display
- 16:9 Ratio Design
- Front Service Design
- 170+°wide viewing angle
Highlights
Size
16:9 ration with 600*337.5mm
Pixel Pitch
0.7mm/ 0.9mm/1.2mm/ 1.5mm
Weight
5.5kg
Contrast Ratio
10000:1
Service Way
Front Service
Refresh Rate
≥3840Hz
Products
P0.9
- 160×180 dot/module
- 640×360 dot/cabinet
- 1/46 Scan
P1.25
- 120×135 dot/module
- 480×270 dot/cabinet
- 1/48 Scan
P1.56
- 96×108 dot/module
- 384×216 dot/cabinet
- 1/45 Scan
P1.87
- 80×90 dot/module
- 320×180 dot/cabinet
- 1/45 Scan
2025 LED Screen Price Check
Fill in the width, and height to get your LED screen budge right now.
Excellent Visual Effect
Designed with a high refresh rate of 3840hz, the A2 Series front service COB LED screen offers a smooth flicker-free image. It achieves a remarkable 10,000:1 color contrast ratio, vastly surpassing the typical 5,000:1 ratio of standard black SMD LEDs, resulting in breathtaking color fidelity.
Golden Ratio LED Screen
With a sleek 600*337.5mm die-casting aluminum design cabinet and a 16:9 aspect ratio, the slim thickness of only 39mm, the LED display ensures easy setup and offers standard 2K, 4K, and 8K resolution,

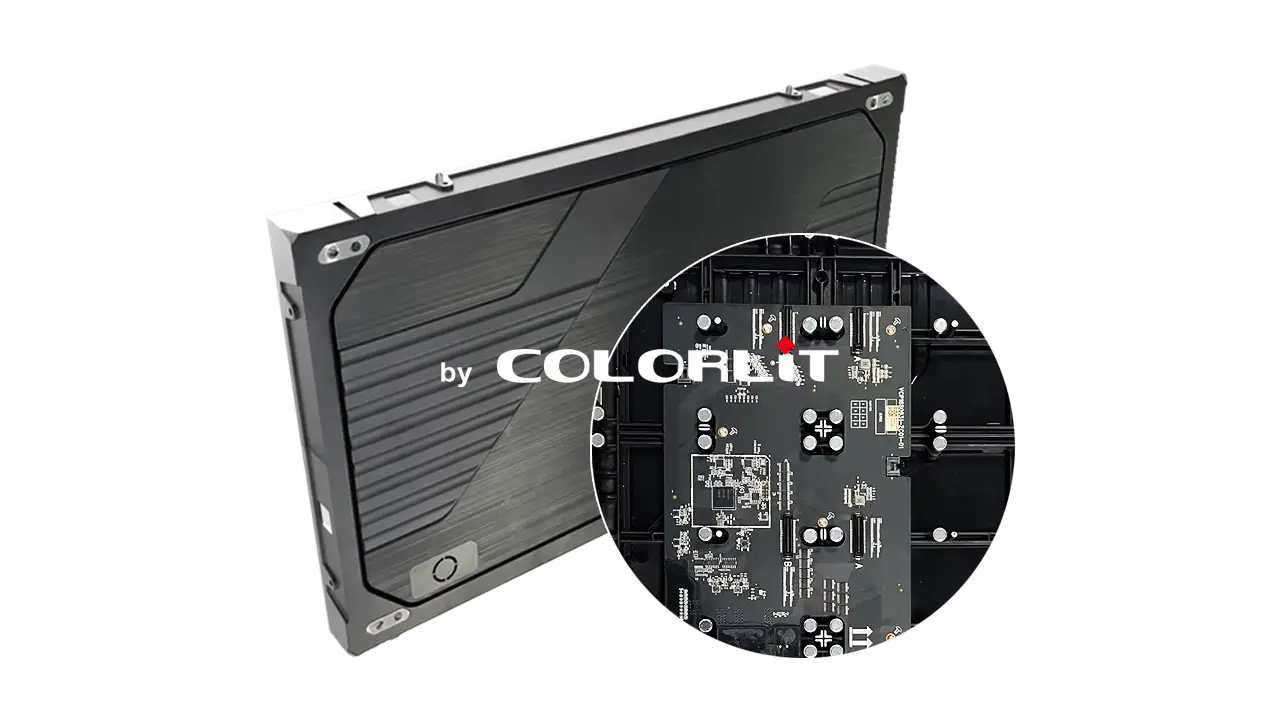

Front Service Design
A2 Series features a front service design, allowing for quick installation and maintenance, while magnetic adsorption technology simplifies assembly and module replacement.
Magnetic LED Modules
Designed with magnetic LED modules for easy replace and assemble. Save case and fast maintenance in a few seconds.
High Protection Grade
A2 Series features a front service design, allowing for quick installation and maintenance, while magnetic adsorption technology simplifies assembly and module replacement.

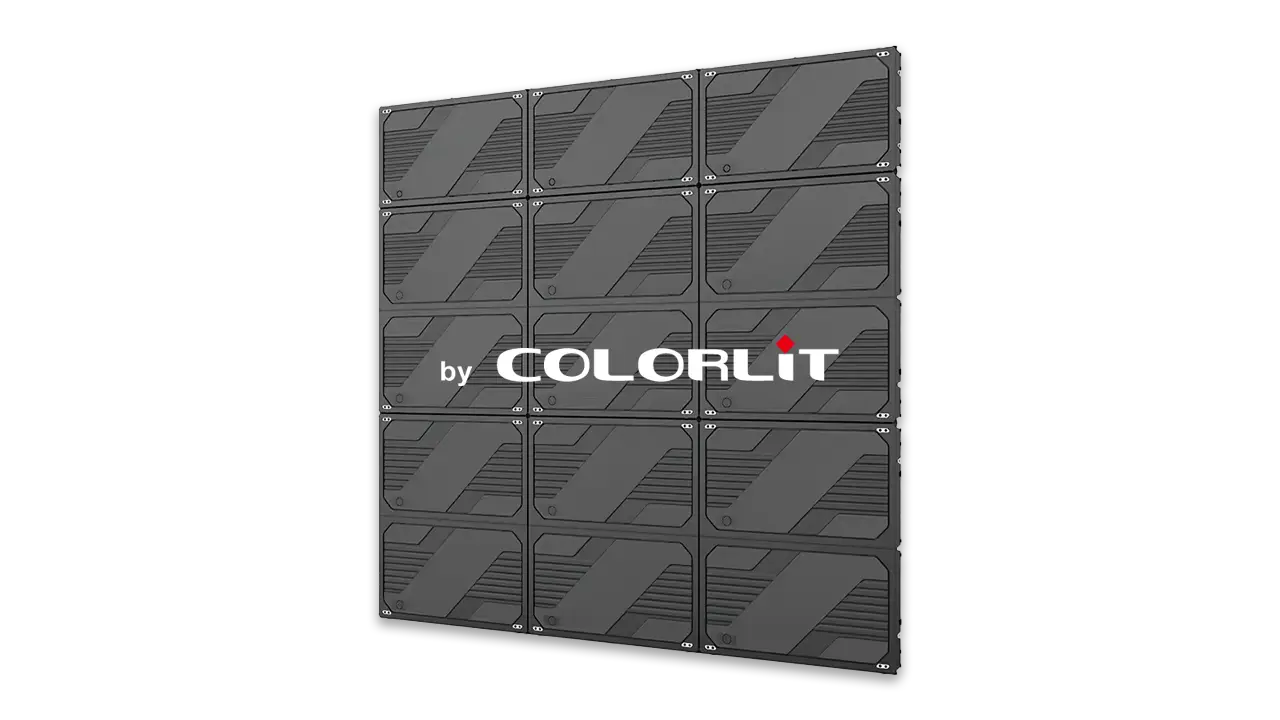

Seamless splicing
The COB technology ensures seamless splicing, enabling the creation of high-resolution and high flatness displays (such as 4K, 8K, and 16K) while maintaining the classic 16:9 golden ratio aspect.
Ultra LightWeight
Engineered with a high-precision die-cast aluminum cabinet, the A2 series guarantees seamless splicing and superior flatness. The cabinet is ultra-lightweight and thin, weighing only 4kg for portability and ease of transport.
Specifications
| Specification | P0.78125 | P0.9375 | P1.25 | P1.5625 | P1.875 |
| LED Type | Mini4 in 1 | Mini4 in 1 | SMD1010 | SMD1010/1212 | SMD1010/1515 |
| Physical density (Dot/sqm) | 1,638,400 | 1,137,778 | 640,000 | 409,600 | 284,444 |
| Module resolution | 192×216 | 320×180 | 240×135 | 192×108 | 160×90 |
| Module size (mm) | 150×168.75 | 150×168.75 | 150×168.75 | 150×168.75 | 150×168.75 |
| Panel Dimension (W×H×D/mm) | 600×337.5×27.5 | 600×337.5×27.5 | 600×337.5×27.5 | 600×337.5×27.5 | 600×337.5×27.5 |
| Panel Resolution | 768×432 | 640×360 | 480×270 | 384×216 | 320×180 |
| Module QTY (W×H) | 4×2 | 2×2 | 2×2 | 2×2 | 2×2 |
| Panel weight (kg) | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Maintenance Mode | Front | Front | Front | Front | Front |
| Cabinet Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Brightness Calibration | Yes | Yes | Yes | Yes | Yes |
| Brightness (Nits) | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 |
| Color temperature (K) | 1000-18500 (Optional) | ||||
| Viewing angle (V/H) | 170°/170° | ||||
| Brightness/Color uniformity | ≥99.8% | ||||
| Contrast ratio | 10000:1 | ||||
| Frame frequency | 50/60 | ||||
| Drive mode | 1/48 scan | 1/46 scan | 1/48 scan | 1/45 scan | 1/45 scan |
| Grey level | 16bit | ||||
| Refresh rate (Hz) | 3840 | ||||
| Max. power consumption (W/sqm) | 350 | ||||
| Avg. power consumption (W/sqm) | 100 | ||||
| Protection level | IP31 | ||||
| Power input | AC90-264V, 47-63Hz | ||||
| Working temperature/humidity (℃/RH) | -20~60℃/10%~85% | ||||
| Storage temperature/humidity (℃/RH) | -20~60℃/10%~85% | ||||
| Certification | CCC/CE/RoHS/FCC/CB/TUV/IEC | ||||
